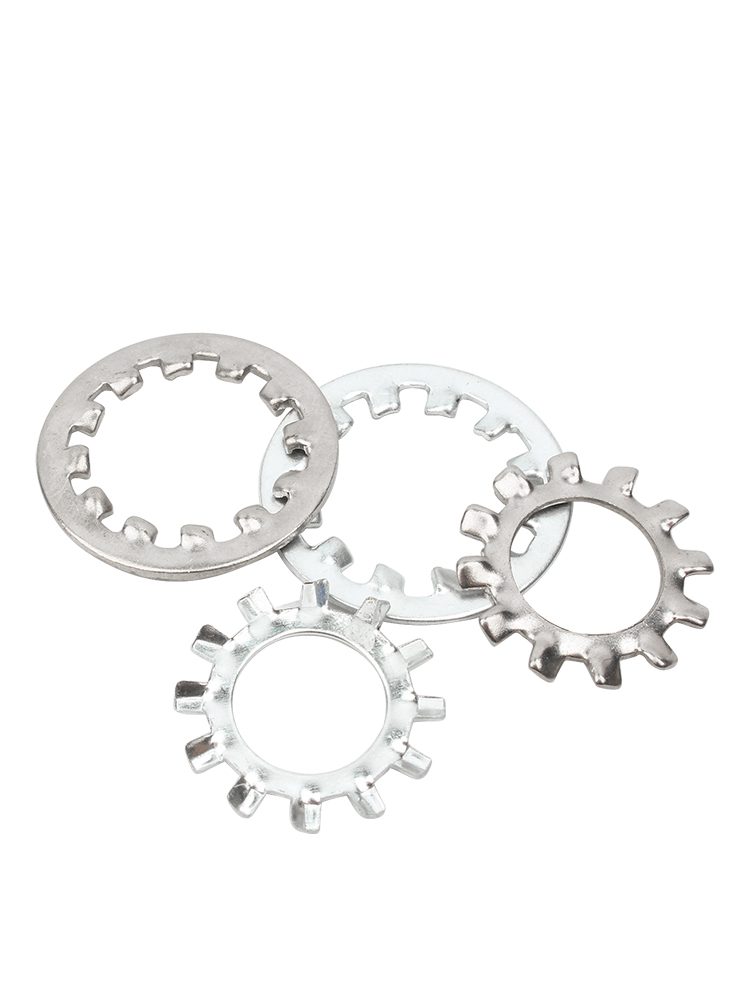

Stainless Steel 304 18-8 External Teeth Lock Washer Serrated External Design-DIN6798 Anti Slip Vibration Resistant Fastener

description

1. High-Grip, Corrosion-Proof Locking Performance
   • Precision-stamped from 18-8 / 304 austenitic stainless steel and work-hardened to ≈ 220 HV, the outward-facing serrations penetrate both the bolt or nut face and the joint material, creating prevailing torque that resists vibration-induced loosening without galling the threads.
   • The continuous chromium-oxide passivation film delivers long-term immunity to salt spray, wash-down chemicals, mild acids and outdoor moisture from −200 °C to +400 °C, eliminating the red-rust risk common to plated carbon-steel alternatives.
   • Optimised tooth geometry—60 ° flank angle, 0.25 – 0.45 mm height (M3–M12 range)—produces up to 25 % higher break-loose torque than comparable split or wave washers while adding only 0.3 – 0.9 mm to the clamp stack.
   • Tested to DIN 6797 Type A and Junker vibration protocols, retaining ≥ 90 % of initial preload after 1 000 transverse-oscillation cycles, even after multiple re-torques.
2. Versatile, Cross-Industry Application Spectrum
   • Electronics & Precision Devices: Grounds and locks PCB shields, standoffs and motor housings where low profile, non-magnetic material and excellent corrosion resistance are mandatory.
   • Medical, Food & Pharmaceutical Equipment: Stainless construction withstands aggressive detergents and autoclave cycles on mixer guards, sanitary pipe clamps and lab-instrument panels.
   • Transportation & Marine Hardware: Maintains clamp integrity on lighting brackets, body trim, battery trays and deck fittings exposed to vibration, humidity and road salt.
   • Machinery, Robotics & Renewable-Energy Systems: Secures sensor mounts, cable glands and guard plates on turbines, conveyors and robotic arms, preserving positional accuracy during high-cycle duty.
3. Installer-Friendly, Time-Saving Handling
   • Symmetrical external teeth self-center under screw or nut faces, eliminating orientation concerns and speeding blind, overhead or gloved assembly.
   • Flat-lay geometry prevents wobble in magnetic sockets and pick-and-place nozzles, improving automated feed reliability and manual throughput.
   • Adds minimal stack height, often allowing retrofit into existing designs without longer fasteners or altered torque settings.
   • Shipped bulk, in resealable field pouches or on tape-and-reel strands, integrating seamlessly with maintenance kits, bench stations and high-speed assembly lines; optional laser-etched size code (≥ M4) aids quick visual sorting.
4. Certified Quality & Long-Term Durability
   • 100 % optical inspection verifies tooth height ± 0.02 mm, OD/ID concentricity ≤ 0.05 mm TIR and hardness per ISO 3506-1; Cp/Cpk data archived for ISO 9001, IATF 16949 and AS 9100 audits.
   • Stress-relief tempering after forming removes residual stresses, preserving high spring modulus for enduring bite through countless service cycles.
   • Electropolished variants achieve Ra ≤ 0.4 µm for hygienic or decorative finishes without altering tolerances or locking performance.
   • QR-coded packaging links each washer lot to melt chemistry, passivation batch and inspection record, ensuring full traceability for aerospace, medical-device and mission-critical infrastructure projects.
